Περιγραφή προϊόντων

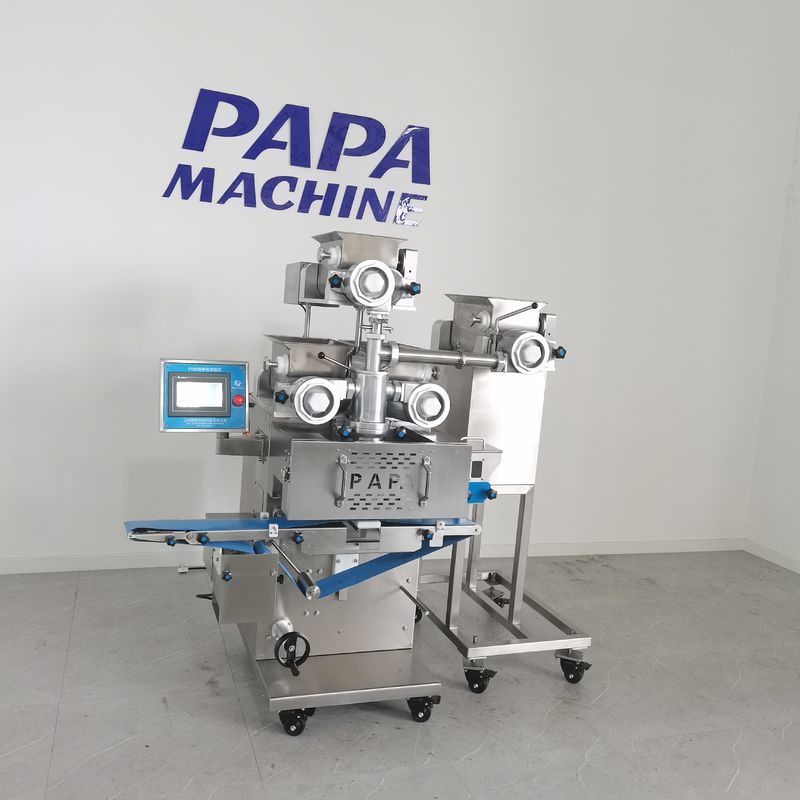

P188 Automatic Three Fillings Maamoul Cookies Encrusting Making Machine For Sales
Description:
The P188 automatic Three Fillings Maamoul cookie filling machine is a piece of equipment used in food production, primarily for making sandwich cookies. It precisely wraps fillings within cookie dough, enabling automated production and improving efficiency and product quality.
This P188 four hoppers maamoul cookies equipment typically utilizes advanced technology and design, offering diverse functions. For example, by adjusting parameters, the filling amount and cookie size can be precisely controlled, ensuring uniform filling and a consistent taste for each cookie. Some cookie filling machines also feature various shaping functions, allowing them to produce sandwich cookies in various shapes and styles, including round, square, and heart shapes. Furthermore, these machines are constructed from food-grade materials, complying with hygiene standards and easy to clean and maintain, ensuring safe and hygienic food production.
Specifications:
Model
P188
Capacity
60-99pcs/min
Product shape
ball, cone, round strip, side square, terraced, serrate and etc.
Product weight
10-250g
Casing and filling proportion
1:9-10:0
Voltage
220V, single phase
Power
3.4kw
Dimension
1680*860*1300mm
Weight
400KG
Features for the P188 Encrusting Machine:
1. The connecting pipe and the inner hole of the connecting seat at the connection between the rectifier and the main body are enlarged to reduce damage to the raw materials and make the discharging faster and smoother.
2. The main body is enlarged, the accessories are reduced, there are no dead corners, and it is easy to clean. And when quadruple filling is added later, the internal space is sufficient, the output is smoother, and the production capacity is higher than that of the P160.
3. The inner stuffing tube adopts Rheon technology, which ensures smooth material discharging, no material eccentricity, and no need for a center ring. The P160 relies on a center ring to solve the problem of eccentricity. Will damage raw materials. The material is made of integral cast aluminum and is not easily damaged.
4. The inner filling tube is fixed by pulling up, and the inner filling tube can be removed without removing the four fixed die head bolts, which saves cleaning and disassembly time.
5. The upper plate of the three-stuffing machine has a reserved egg yolk hole. The egg yolk beating device can be directly installed later to beat the egg yolk. The egg yolk beating position is fixed on the upper machine plate, which is more stable than the P160.
6. The cutter adopts a vertical up and down motion cutting method. The cut is parallel to the conveyor belt. The filling effect is more uniform and the weight stability is better guaranteed (the motor adopts a brake imported from Japan to make the filling effect more uniform). It is the same as Rheon. same brand). Motor brand Nissei. P160 is a swing structure.
7. The cutter, cutter head lifting and lifting are all made of sheet metal processing structure. The transmission is stable and the noise is low. The machine will not shake when 100 pieces are turned on. /minute. The 160 cutter head adopts sheet metal structure. 160. If the drive is faster, the machine will shake because the internal cutter head transmission is a swing structure.
8. The upper cam has low noise and the adjustment of the upper cam is simple and convenient.
9. The conveyor belt knife edge uses German igus angular bearings, which have less friction than the 160-piece metal crushing blade, thus greatly extending the life of the belt.
10. The mixing teeth and copper lining are made of new materials, which are more wear-resistant and will not produce black oil or material leakage.
11. The outer mold fixed die head is not easy to damage the thread teeth when cleaning the inner teeth, and the disassembly wrench is equipped with a hexagonal hole type, making disassembly more convenient.
12. The touch screen is placed on the left side so that during debugging, the left hand can control the touch screen and the right hand can pick up the product.
Food produced by P188 Automatic Four Hoppers encrusting machine: Application:
Encrusting machine for strip/twist cookies making machine:
;
